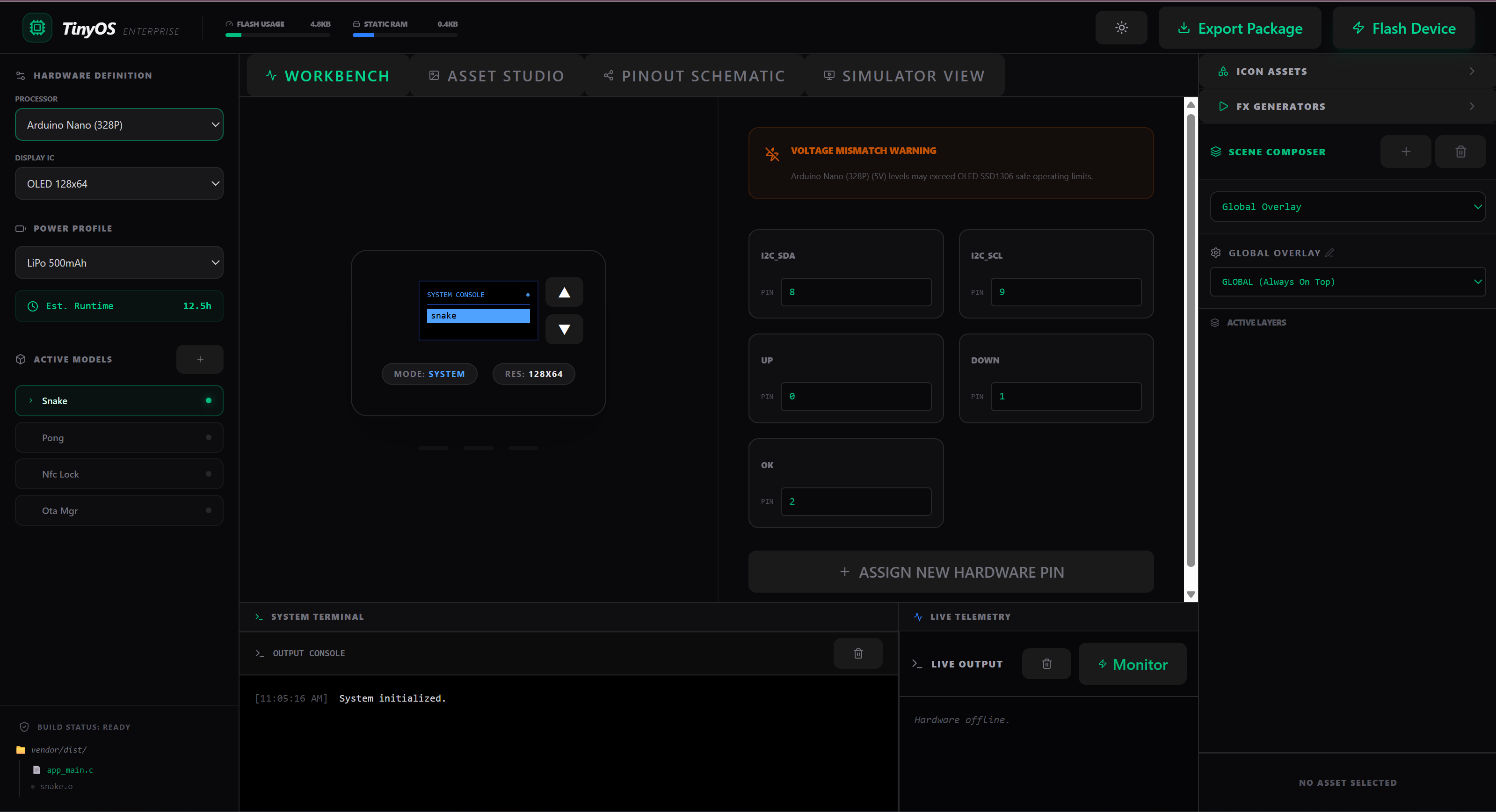

01 // WORKBENCH
The central command for hardware definition and power profiling.
- Processor Selection (ESP32-C3, RISC-V, etc.)
- Power Profiling with real-time runtime estimates (LiPo 500mAh)
- Hardware Pin Assignment (I2C_SDA, SCL, Button Mapping)

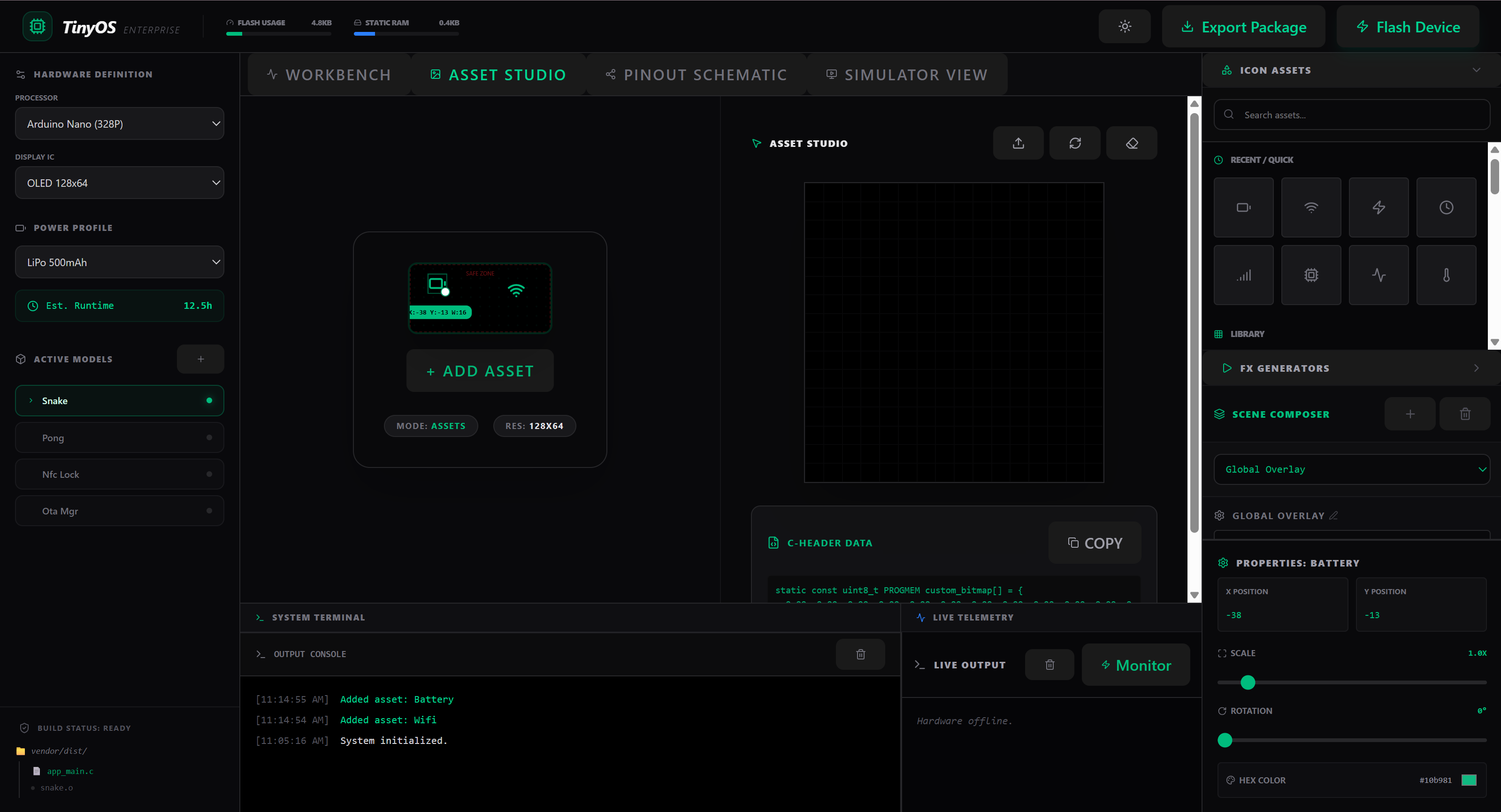

02 // ASSET STUDIO
Fine-tuned control over visual components and C-Header generation.
- Property Inspector: Precise X/Y, Scale, and 360° Rotation
- Direct C-Header Data Export for pixel-perfect bitmaps
- Enterprise Icon Library & FX Generators integration

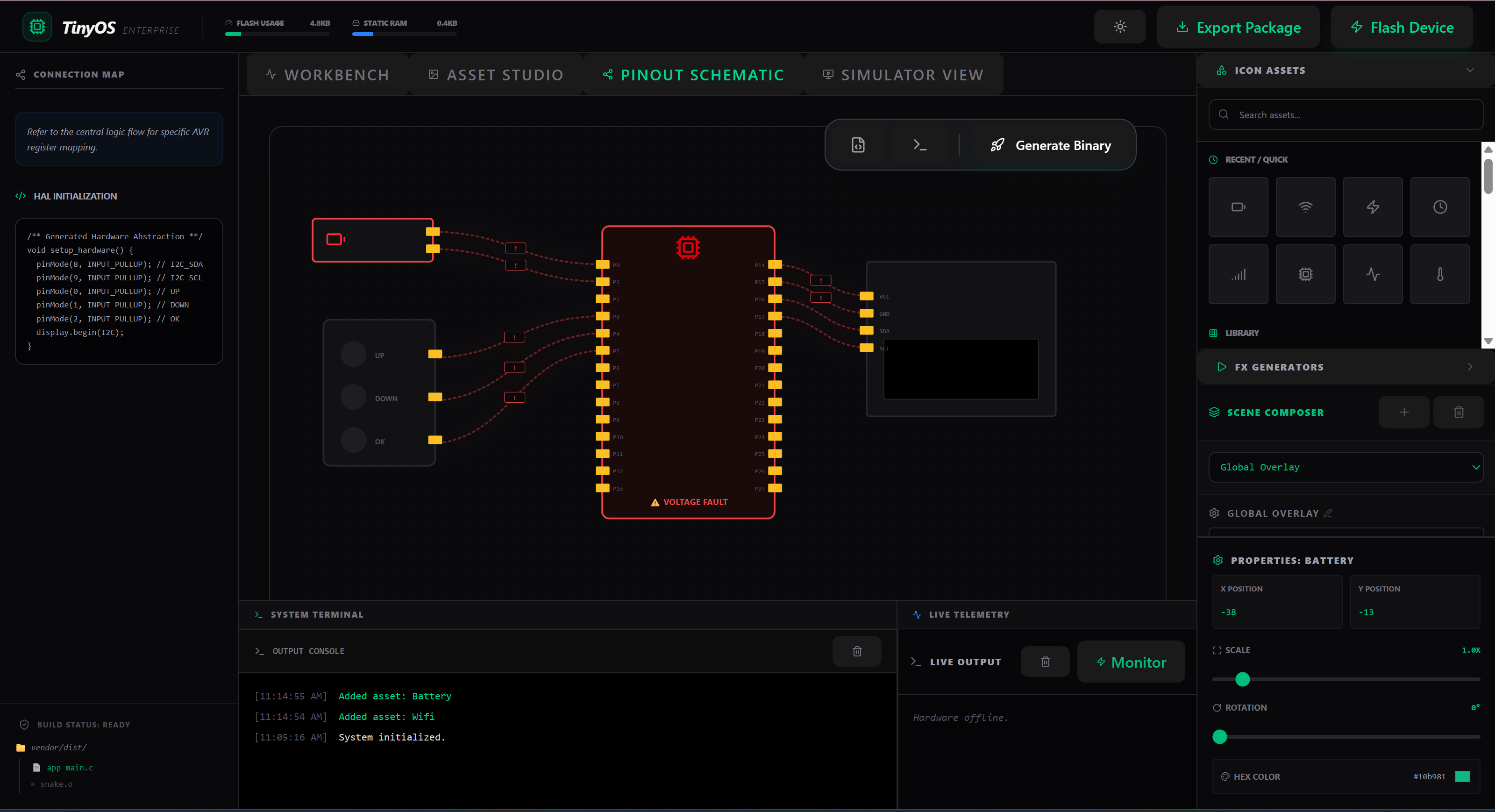

03 // PINOUT SCHEMATIC
Visualizing the physical layer and HAL initialization.
- Live Trace Mapping between MCU and Peripherals
- Automated HAL Initialization Code Generation
- XTENSA register mapping and I2C/SPI bus visualization
04 // SIMULATOR VIEW
Full hardware emulation before you flash the device.
- Real-time Device Node Emulation (OLED SSD1306)
- Interactive Virtual Buttons (UP, DOWN, OK) for UI testing
- Live Output Console and Flash/SRAM usage monitoring
